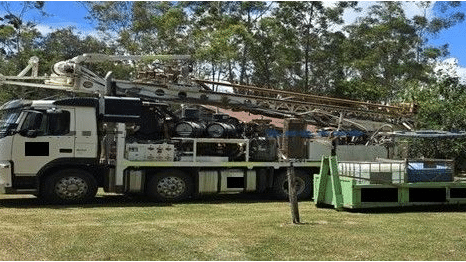

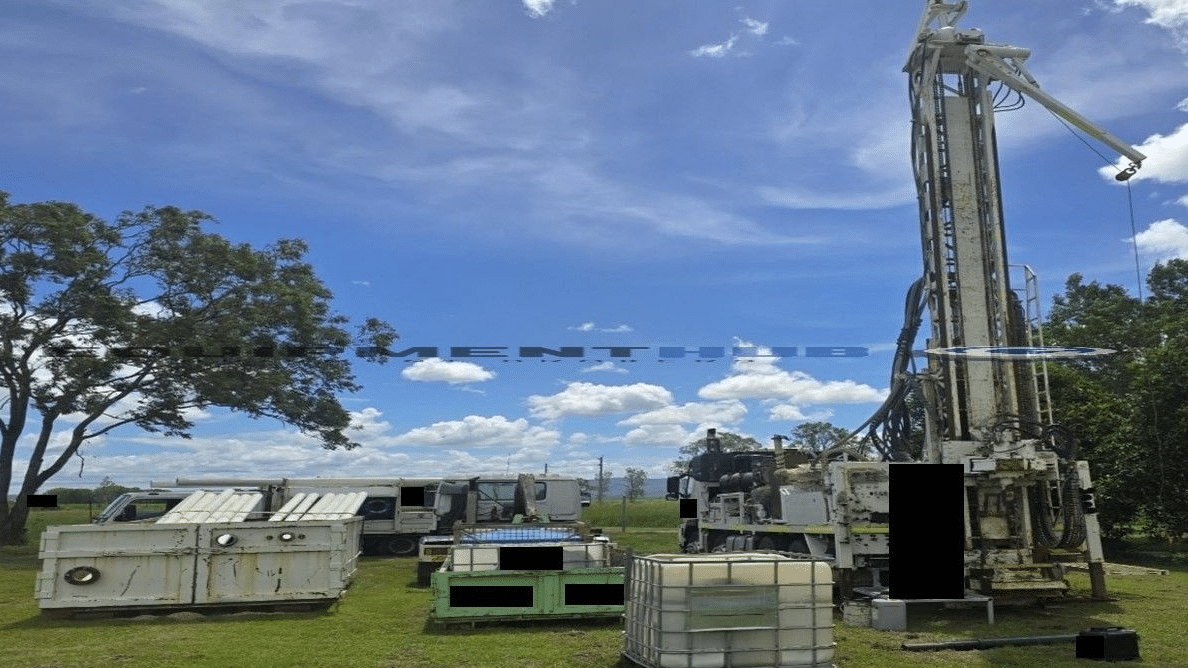

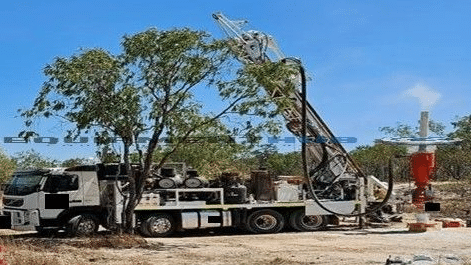

UDR 650 truck-mounted drill rig with extensive tooling and modular support options. Fully equipped multipurpose rig suitable for water bore, RC, and aircore drilling applications. Onboard Sullair compressor and recent major mechanical servicing completed.

Specifications:

Make: UDR
Model: 650
Configuration: Truck-mounted drill rig
Rig Truck: Volvo (Twin Steer)
Year: 2012 (truck)

Compressor:

Sullair onboard compressor
1,150 CFM / 350 PSI

Capabilities:

Set up for Water Bore, RC, and Aircore drilling
Table opens to 14” casing/bit capacity

Recent Works / Maintenance:

Air end serviced
Separator filter replaced
New compressor oil
New head slides
New jib ram
New pull down ropes
Full head service completed

Included Equipment:

Cyclone & splitter
New bull hose
25 x used 4” RC rods with inner tubes
2 x head tubes
Air RC swivel
Mud rotary swivel
Hydraulic breakout arm
4” RC hammer (good condition) + 2 hammer tubes
7 x 5” hammer bits (used)
1 x 4” back hammer
1 x 8” aircore bit
4” aircore bits (2 new, 3 used)
Blow up sub
4 ½” PDC bit
6” casing elevator set
Diverter box with 20 rubbers
Stuffing box
Rod spanners
Dig out sub

Optional Packages:

Option 1 – Water Bore Package (+$15,400 ex GST):

12” blade bit (near new)
7 7/8” blade bit
8” tricone (near new, medium formation)
6” Shreps hammer + 6” & 8” bits (new)
Adaptors, rod spanners, casing elevators

Option 2 – RC Rod Package (+$55,000 ex GST):

180 m RC 4” Remet rod string (new)

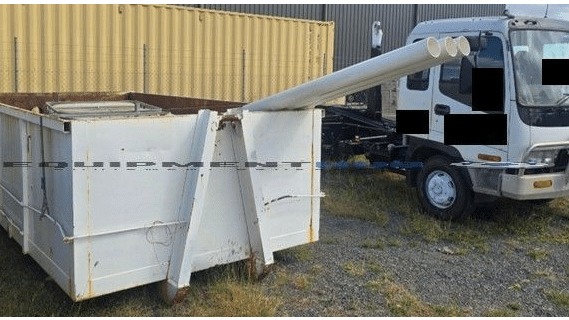

Option 3 – Hooklift Support Truck Package (+$55,000 ex GST):

2000 Isuzu hooklift truck
3 bin system:
Bin 1: 6x5 Gardner Denver mud pump (Perkins engine)
Bin 2: PVC and gravel storage
Bin 3: water suttles

Additional Info:

Truck-mounted drill rig package
Highly versatile multi-application system
Location: Queensland, Australia
