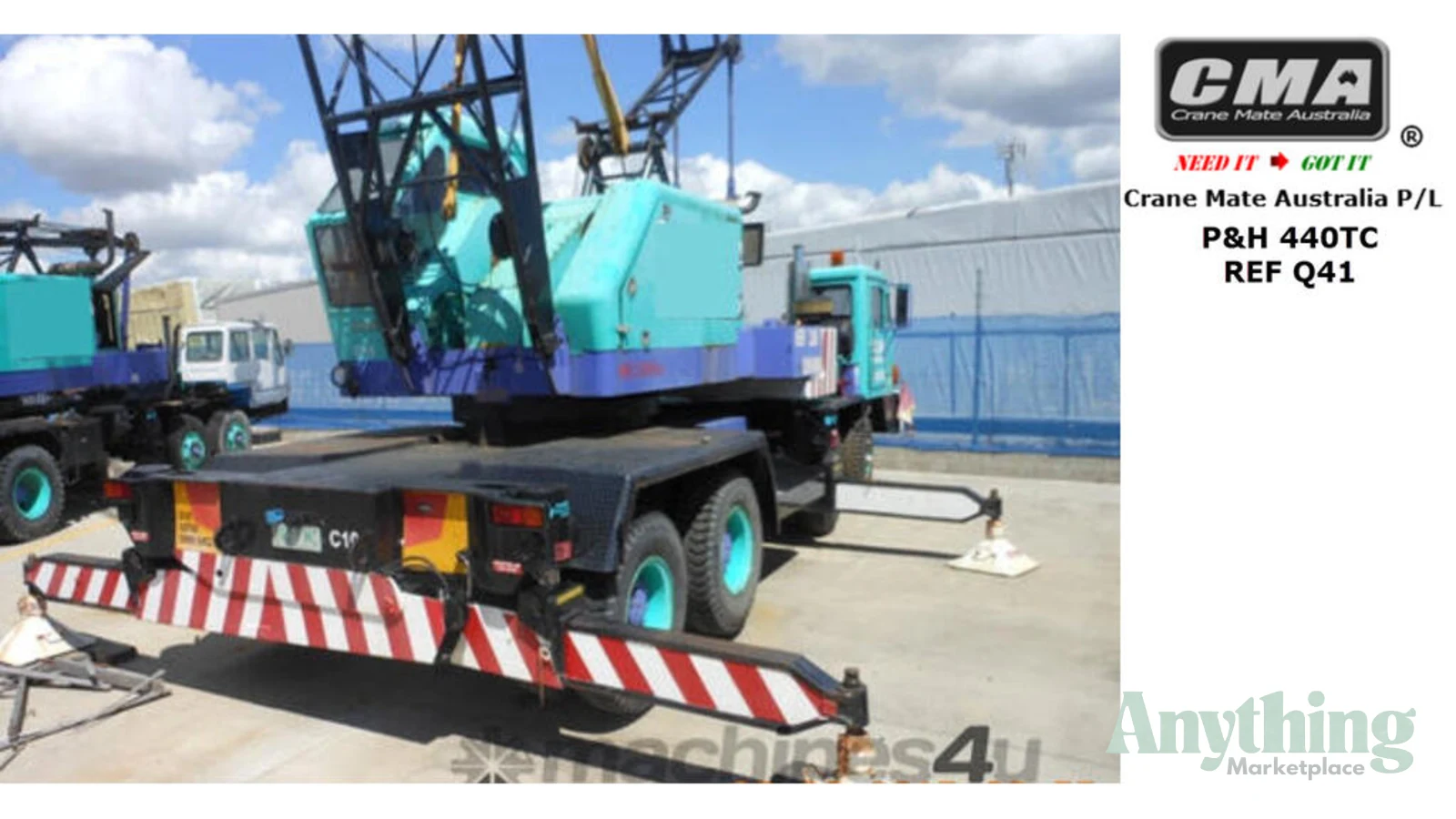

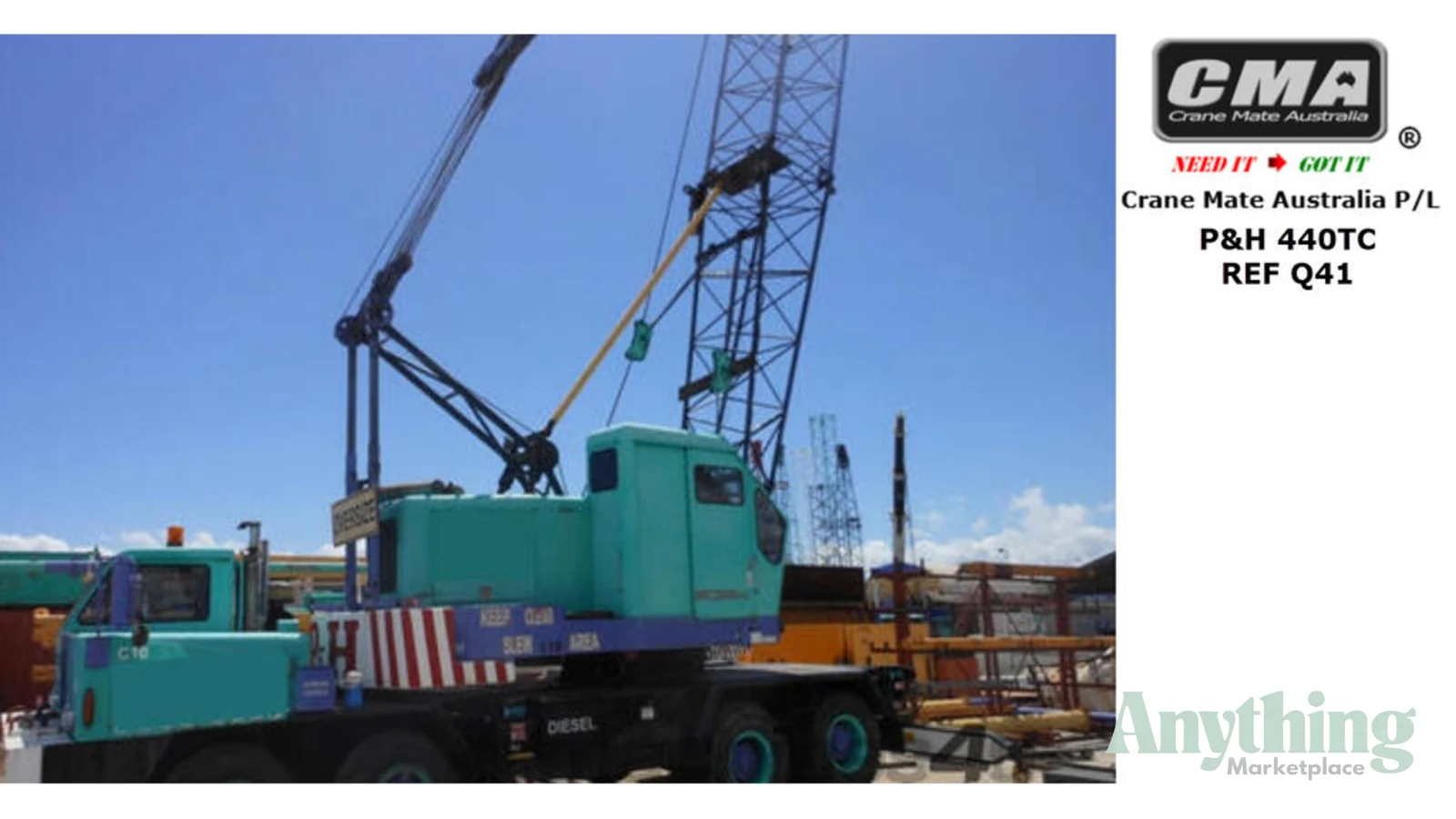

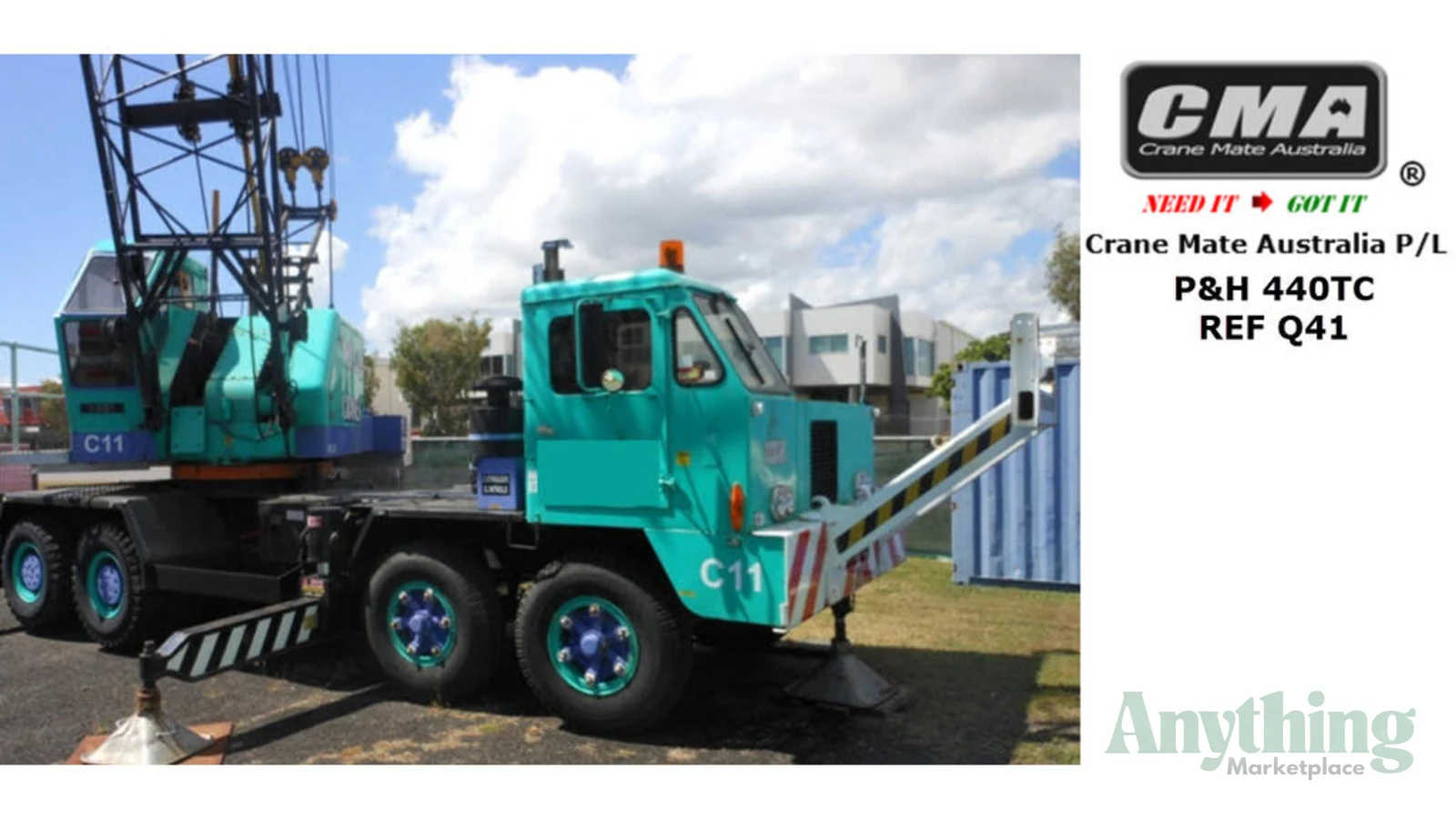

P & H 440 TC 36.3T Pin Jib - 2 units available
2 x P&H 440TC (36T) Pin Jib truck crane both have been 10yr rebuild & certified in 2016, they are all in good working order, all accessories & fly jibs.

The carrier is 8.78 meters long and 2.74 meters wide. The transport mass is approx. 38.6 tonnes.
The carrier is powered by a Cummins NHF-240 or a Detroit Diesel 6-7N diesel engine. Both rear axles are powered, both front axles are steerable.

The outrigger base measures 4.89 x 6.1 meters.
For the erection of long main booms is it required to install additional outriggers at the rear of the chassis.
Attached to the superstructure is counterweight with a 7.35 tonne mass with a 3.56 meter tailswing.
In front of the cabin on the undercarriage is a counterweight slab with a 2.5 tonne mass installed.

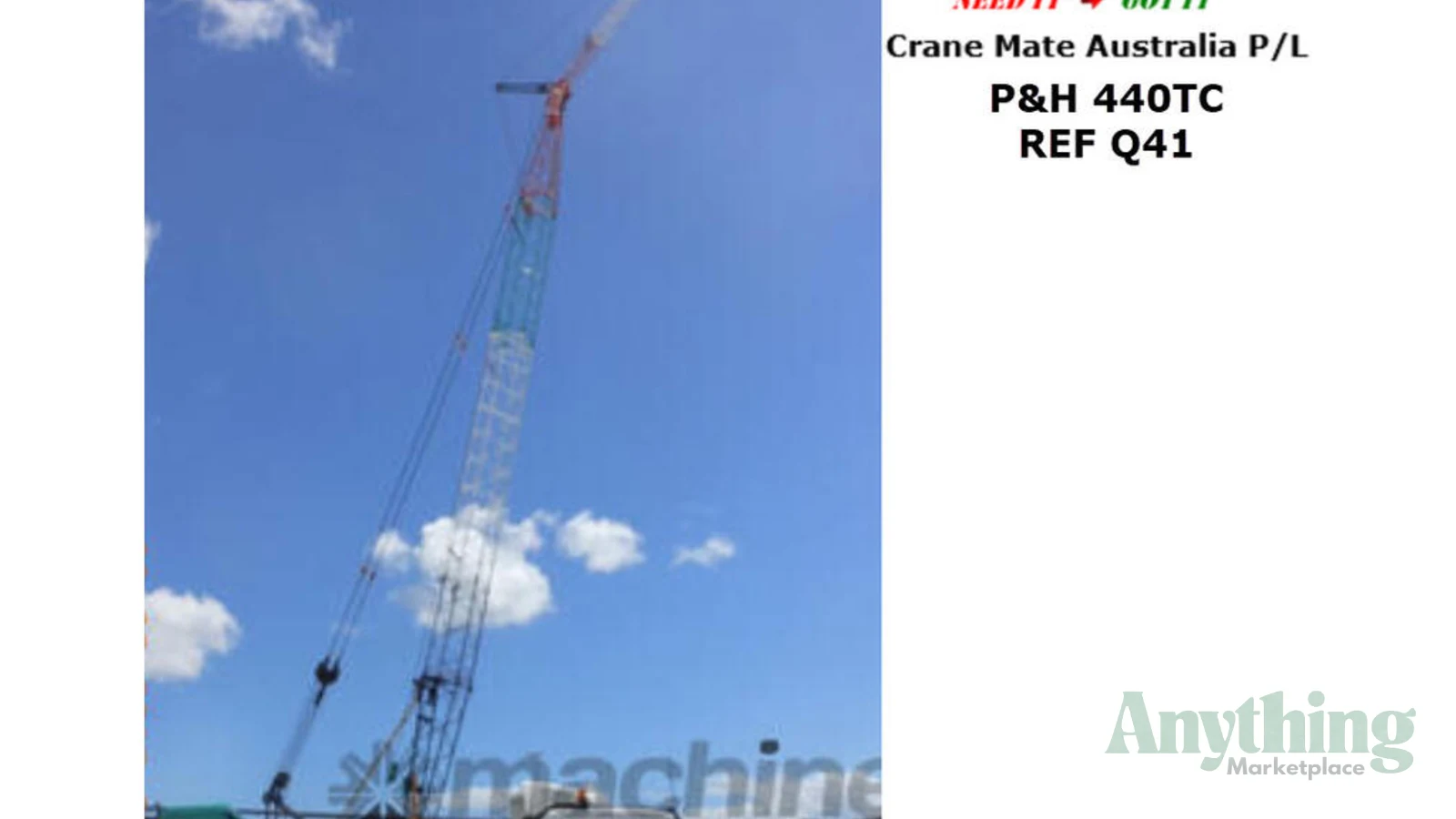

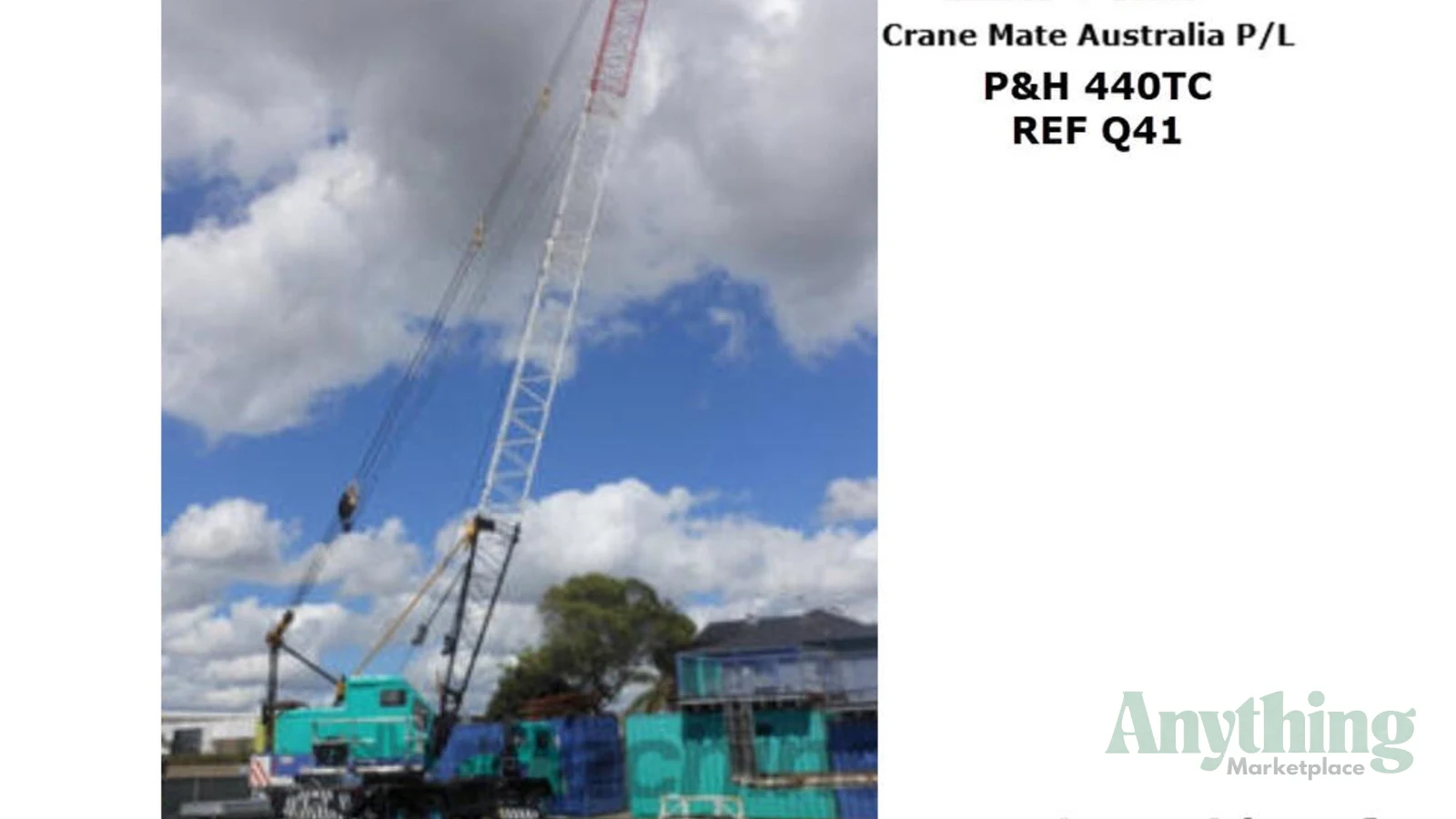

The main boom has a 12.2 meter base length and a maximum length of 51.8 meters.

Please let me know if you need more information on these units.
