ACHILLES LOVOL 404 Tractor Combo
Including TZ04D 4in1 Front Loader, 2in1 Fork and 4Ft Slaher

Additional Implements are available for individual purchase

3-Year Warranty with Australian-Backed Parts

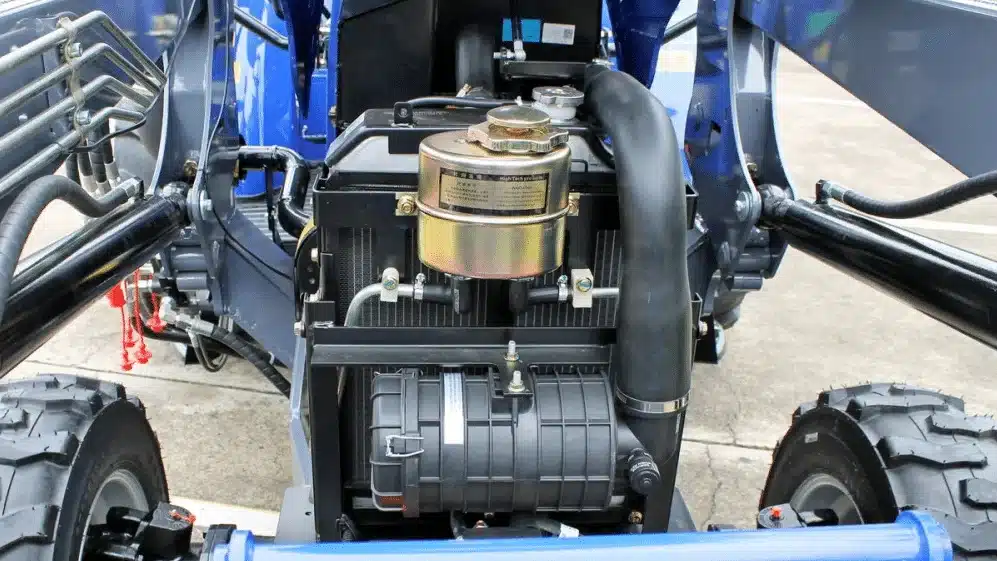

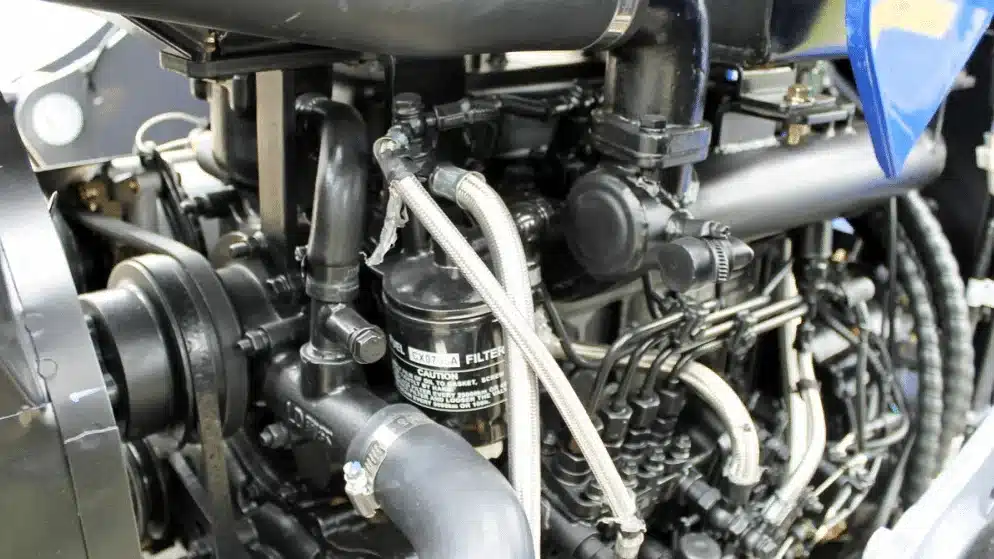

POWERFUL 40HP ENGINE
Experience unmatched performance with this advanced 40HP 4-cylinder engine, delivering robust power and fuel efficiency for demanding tasks.

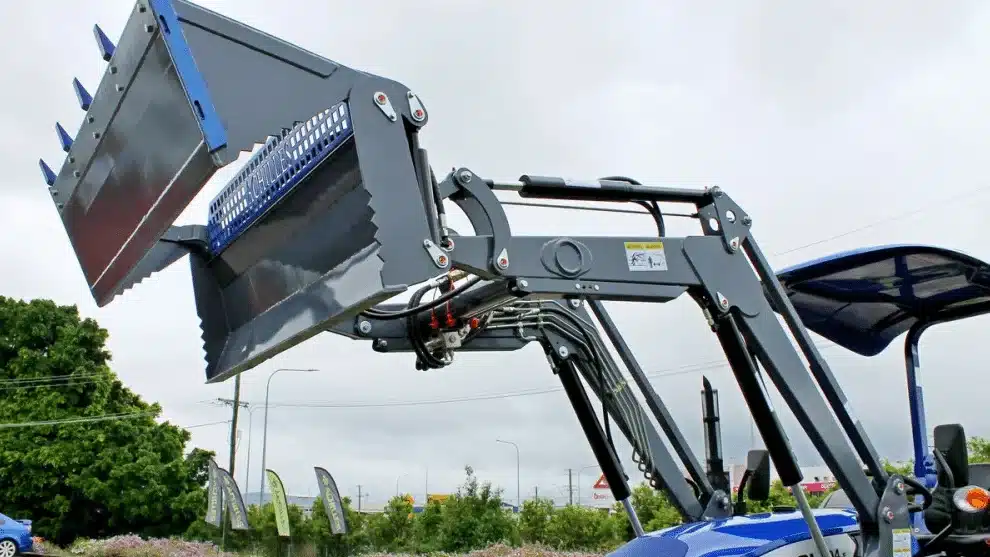

TZ04 FRONT LOADER
The TZ04 front loader features a 0.3 m³ bucket capacity, with a safe working load of 450 kg and a maximum load capacity of 600 k

DURABLE E-COATING
The full-body e-coating provides exceptional corrosion resistance, maintaining durability and appearance in tough environments.

8X8 SHUTTLE SHIFT
Enjoy seamless gear changes and precise control with the 8×8 synchromesh shuttle shift, ideal for frequent direction changes.

WIDER INDUSTRIAL TIRES
Stay comfortable and productive with the ergonomic, adjustable Grammer brand seat, designed for long hours of operation.

PREMIUM GRAMMER SEAT
Stay comfortable and productive with the ergonomic, adjustable Grammer brand seat, designed for long hours of operation.

QUICK ACCESSORY CHANGE
Switch implements effortlessly with the Euro-mount quick attachment system, saving time and boosting efficiency.

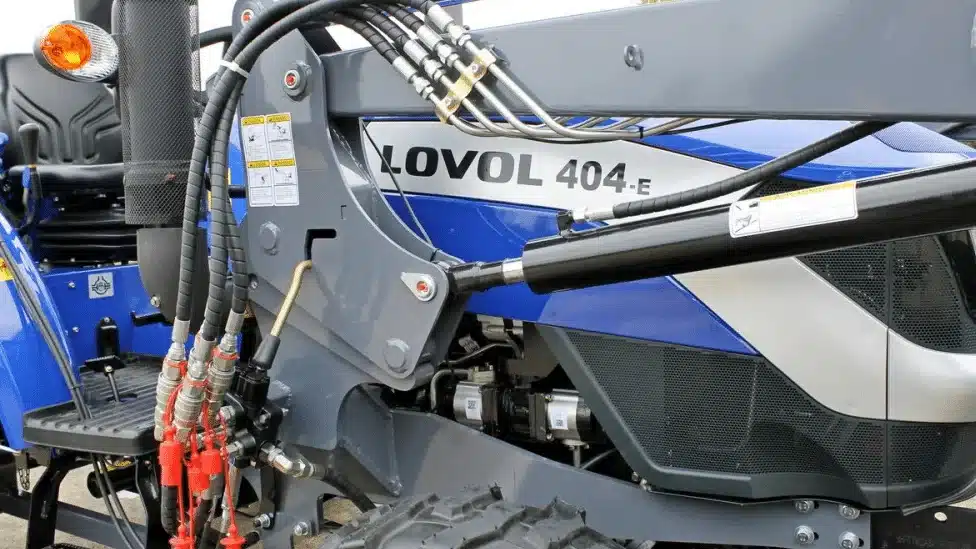

EXTRA HYDRAULIC OUTPUTS
Two-channel hydraulic remote outputs expand functionality for powering a range of attachments and implements.

Engines
Engine Model:
LaiDong 4L23BT
Engine Gross Power:
40HP
PTO Power:
540/720 r/min
No. of Cylinders:
4
Rated Speed:
2400RPM
Total Displacement:
2.31CC
Fuel Tank Capacity:
26L
Operations
Front End Load:
600 KG
Transmission:
8x8 Shuttle Shift
Gearbox:
Synchromesh Shuttle Shift
Clutch:
9inch Dual Stage Dry Clutch
Differential:
Mechanical gear
Front Axle:
Bevel gear final drive
Rear Axle:
Stepless Adjustable Wheel Hub
4wd:
Front Wheel Assist
Dimensions
Overall Weight:
Overall Length:
4900mm
Overall Width:
1600-1800mm
Overall Height:
2500mm
Ground Clearance:
328mm
Front Tyre Size:
28X9-15
Rear Tyre Size:
15-19.5
Hydraulics
Implement Flow Rate:
24 L/min
Steering Flow Rate:
12 L/min
Rear Remotes:
2 Pairs

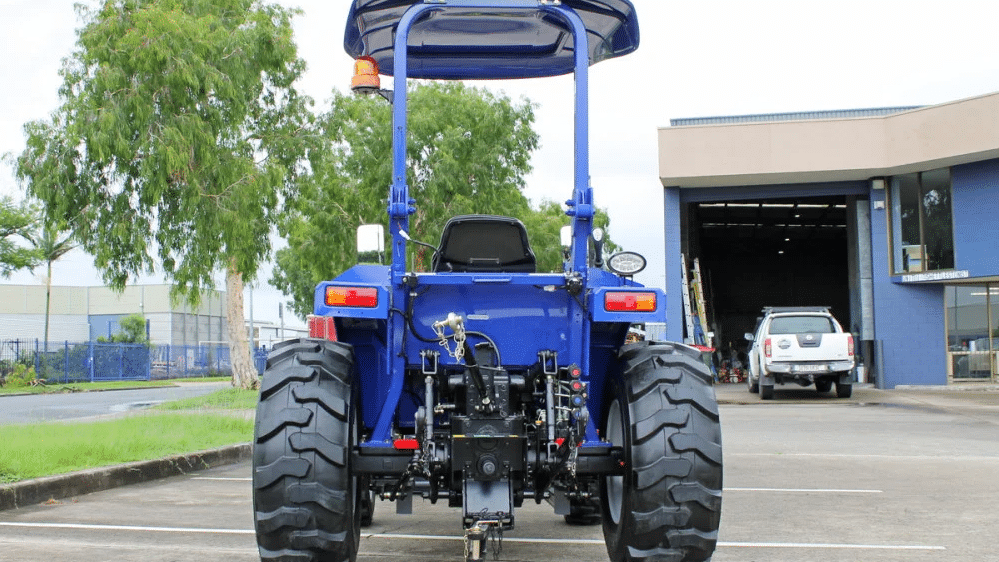

Linkage:
Standard Cat-1 Rear 3pl
Behind Hitch Point:
720kg Lift @610mm
