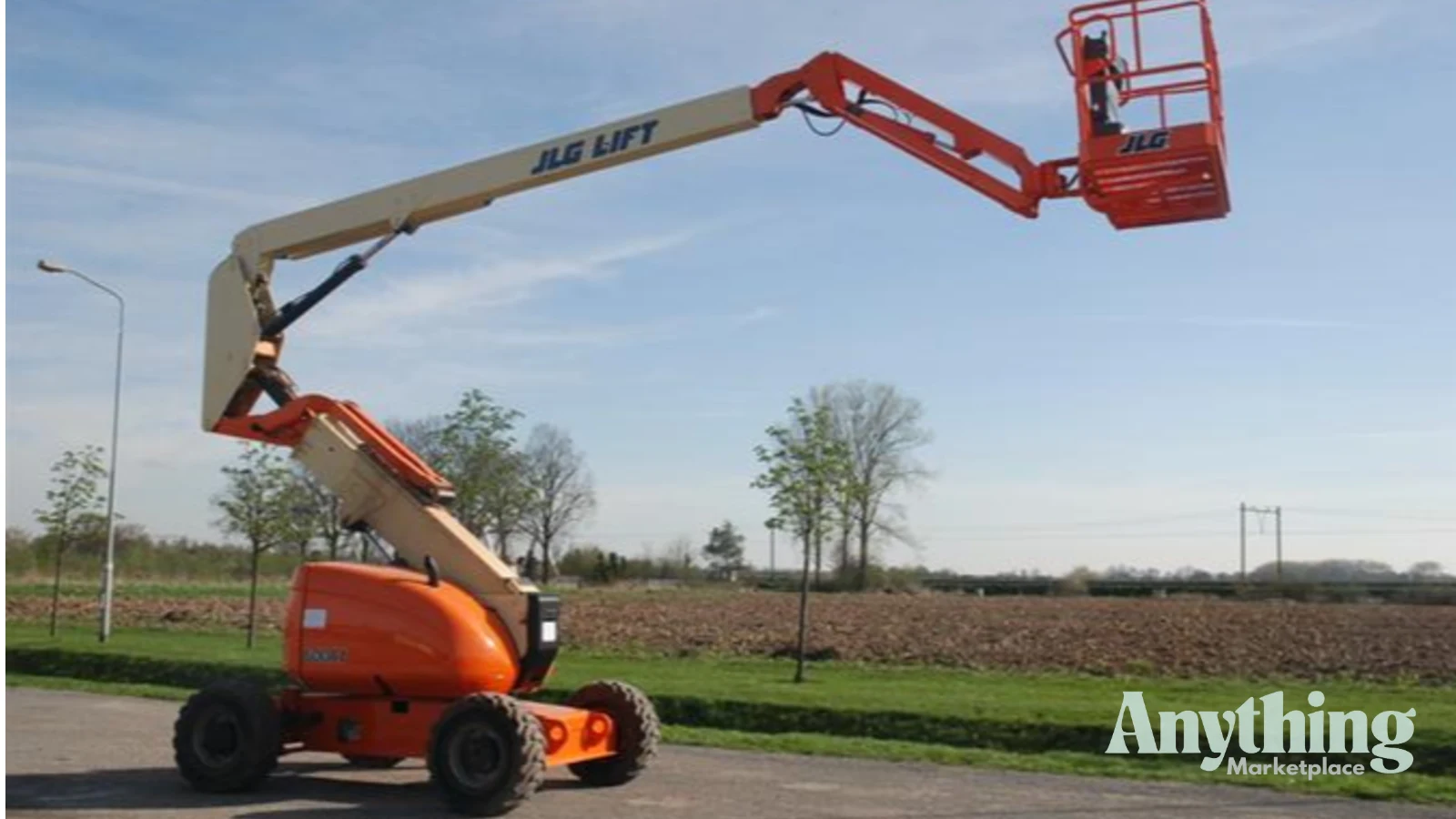

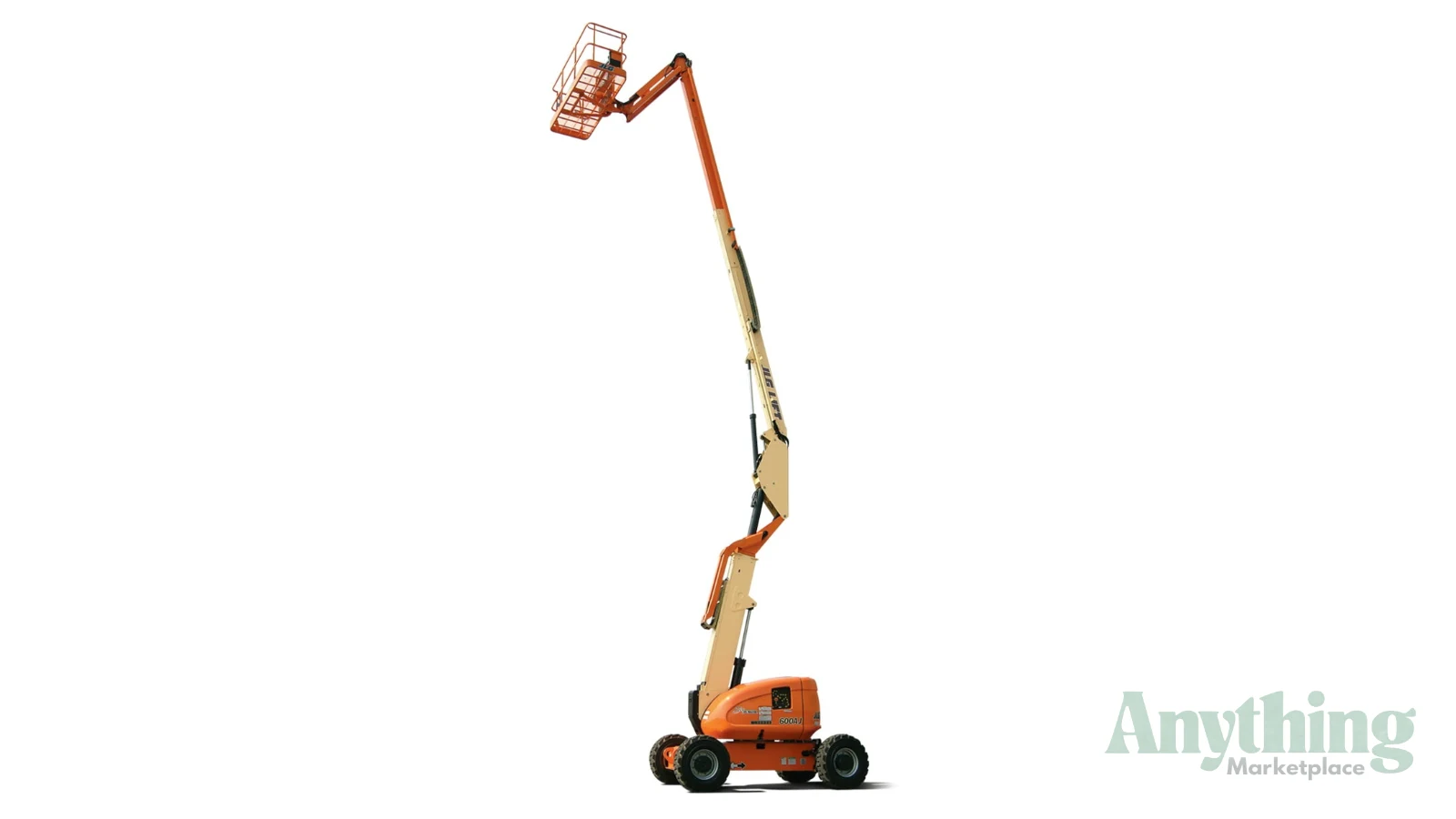

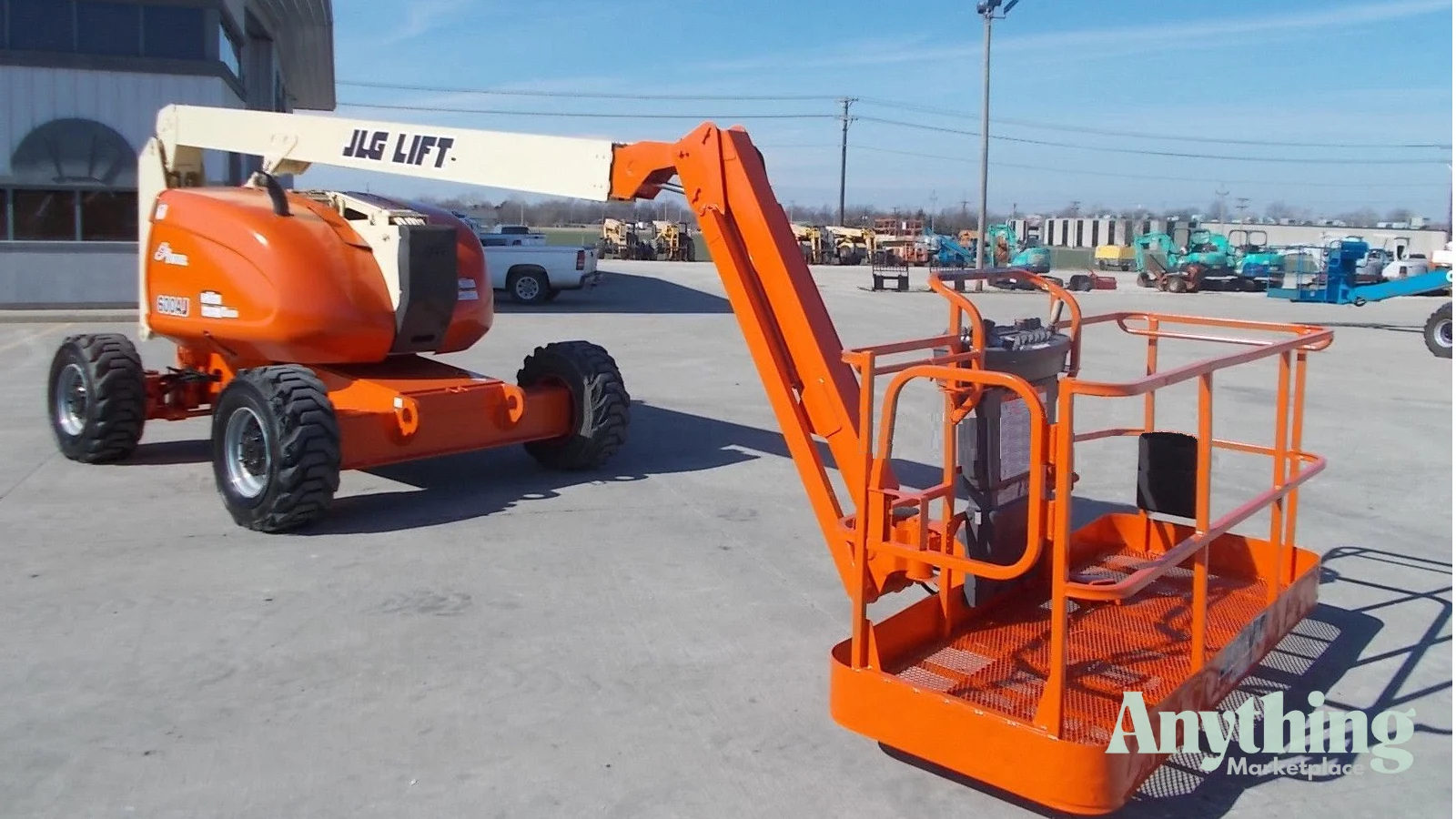

New JLG 600AJ Articulating 60 foot Boom Lift

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. Larger work envelopes provide you with access to those hard-to-reach places.

Features

*Smooth control, proportional hydraulic 4 wheel drive,
with two speed ranges
*Proportional lift and swing controls at the platform
for fast functionality
*Oscillating front steer axle with the boom within
10 degrees of centre, assists 4 wheel drive traction
*4 wheel steer
*Jib boom and basket rotate
*Knuckle boom arrangement allows fast operating speeds
*Cylinder boots protect cylinder rods from overspray and
contaminants
*Lug pattern urethane filled tyres
*Multi axis 4 degree level sensor
*Plug in JLG analyser at platform and base to indicate
system functions for servicing and adjustment
*Deutz Engine D2011 L04. High speed, 4 cylinder,
liquid (oil cooled), 48.5kW engine pre-glow and post-glow
feature reduces emissions

Specifications

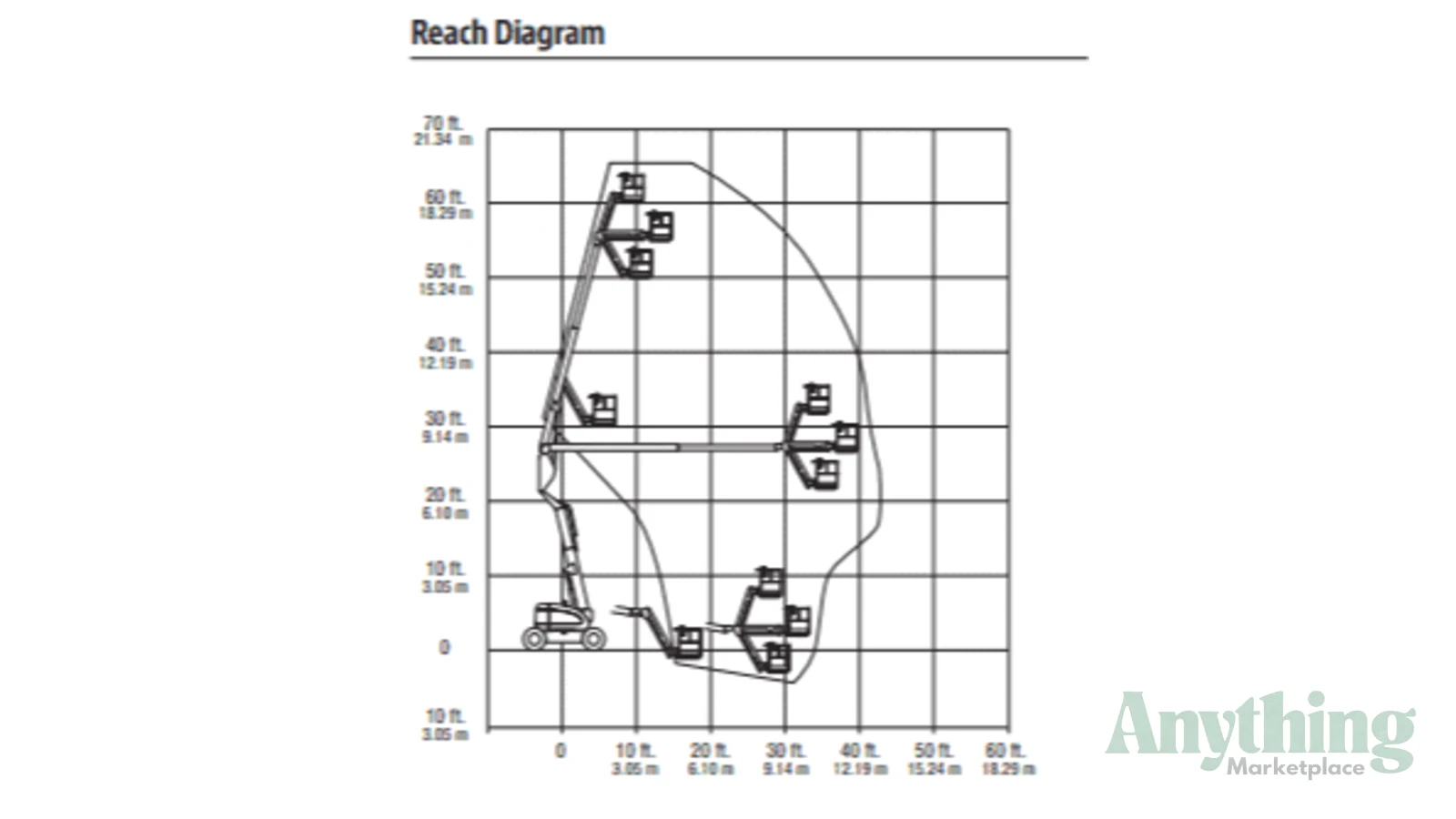

performance:
Platform Height (max.) 18.29m
Working Height 20.29m
Platform Rotation Angle 180°
Jib Raise Angle 70°
Jib Lower Angle 65°
Jib Articulation Range 135°
Maximum Horizontal Outreach 12.12m
Platform Capacity 230kg
Slewing Angle 360°
Continuous Slew Yes

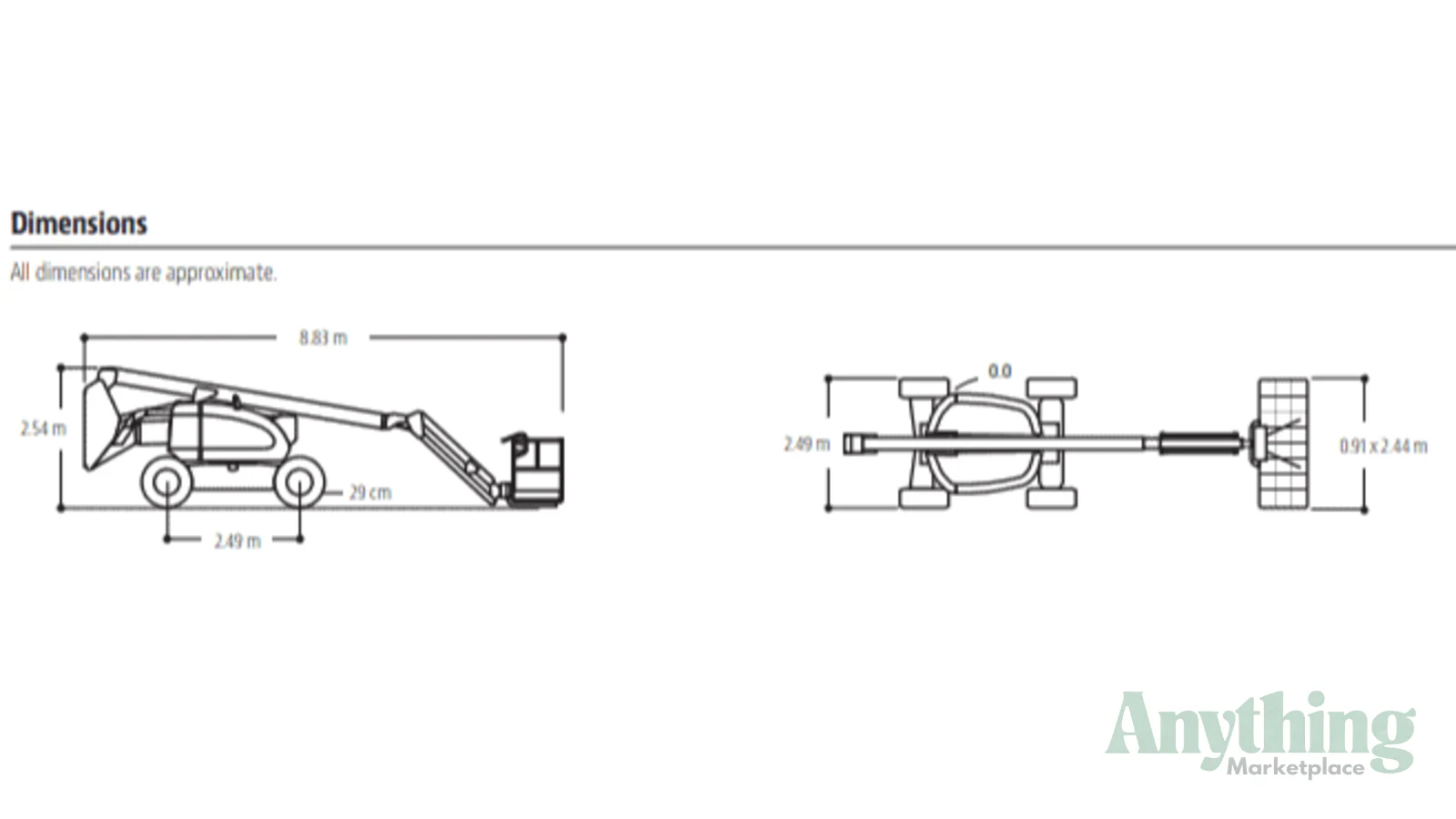

Dimensions:
Stowed Length 8.83m
Stowed Height 2.57m
Overall Width 2.44m
Wheelbase 2.44m
Ground Clearance 0.30m
Platform Width 2.44m
Platform Length 0.91m
Overall Jib Length 1.83m
Tailswing 0m
Axle Oscillation Std
power:
Power Source Diesel
Engine Make Deutz
Engine Model D2011 L04
Engine Power 48kW
Genset 5.5kVA Miller
Auxiliary Power 12V Pump
travel:
Tyre Size 14 x 17.5
Tyre Type Urethane Filled
Inside Turn Radius 1.68m
Outside Turn Radius 3.56m
Gradeability with 4WD 45%
Drive Speed – 4WD 7.68km/h
Maximum Ground Bearing Pressure 5.25kg/cm2
Weights and capabilities:
Fuel Tank Capacity 113.56 Ltr
Hydraulic Tank Capacity 115.83 Ltr
Operating Weight 11,900kg
