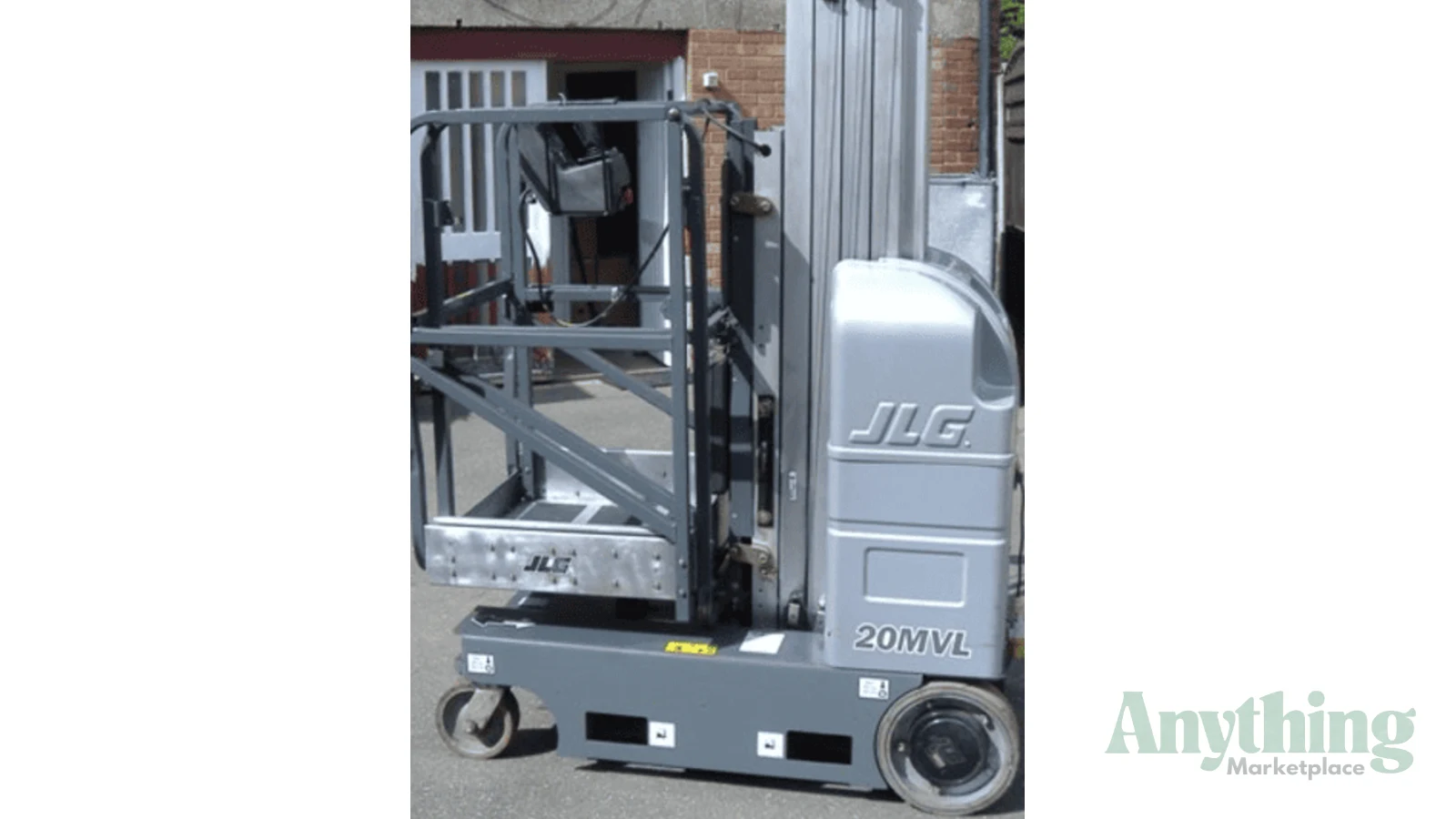

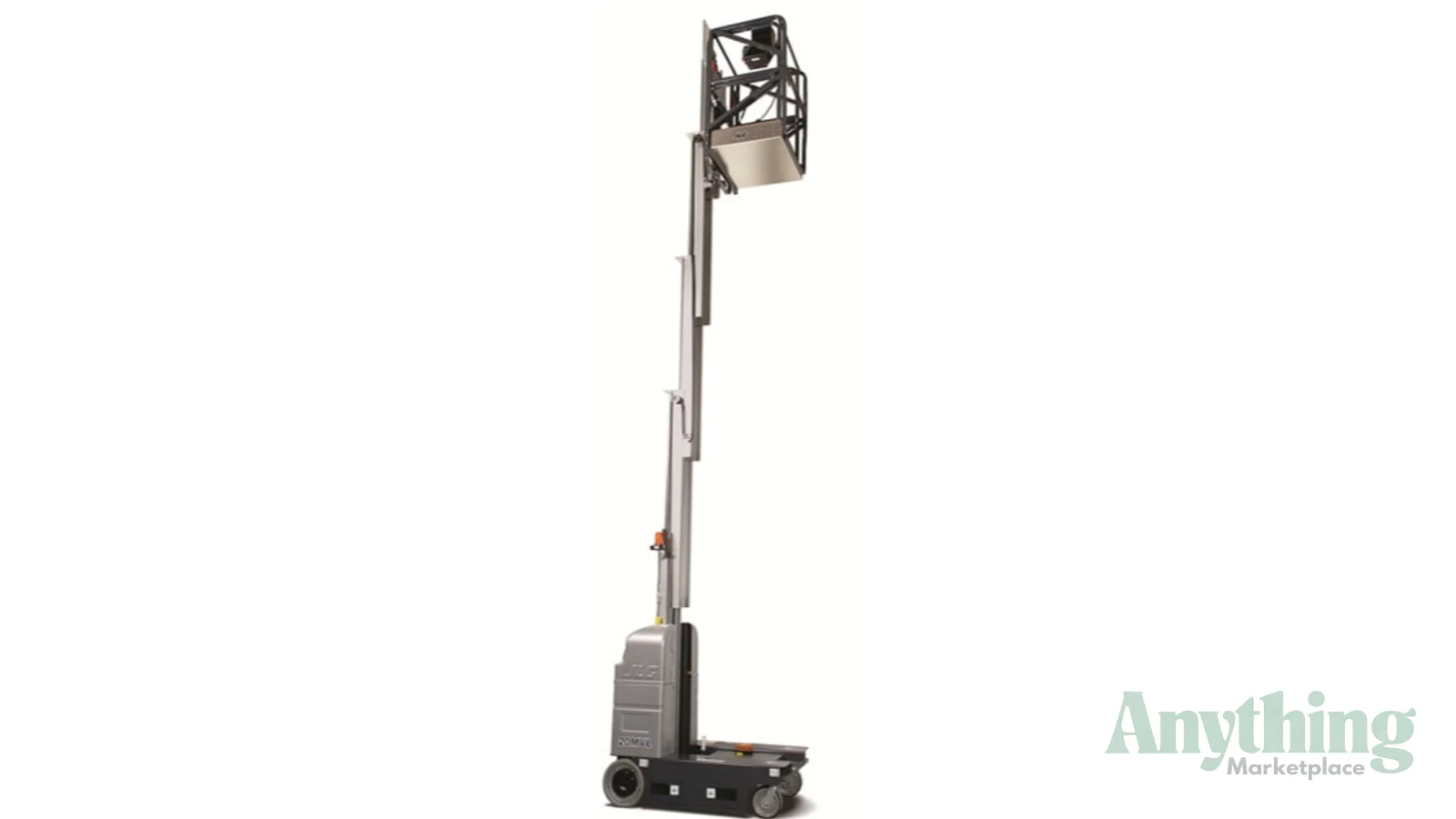

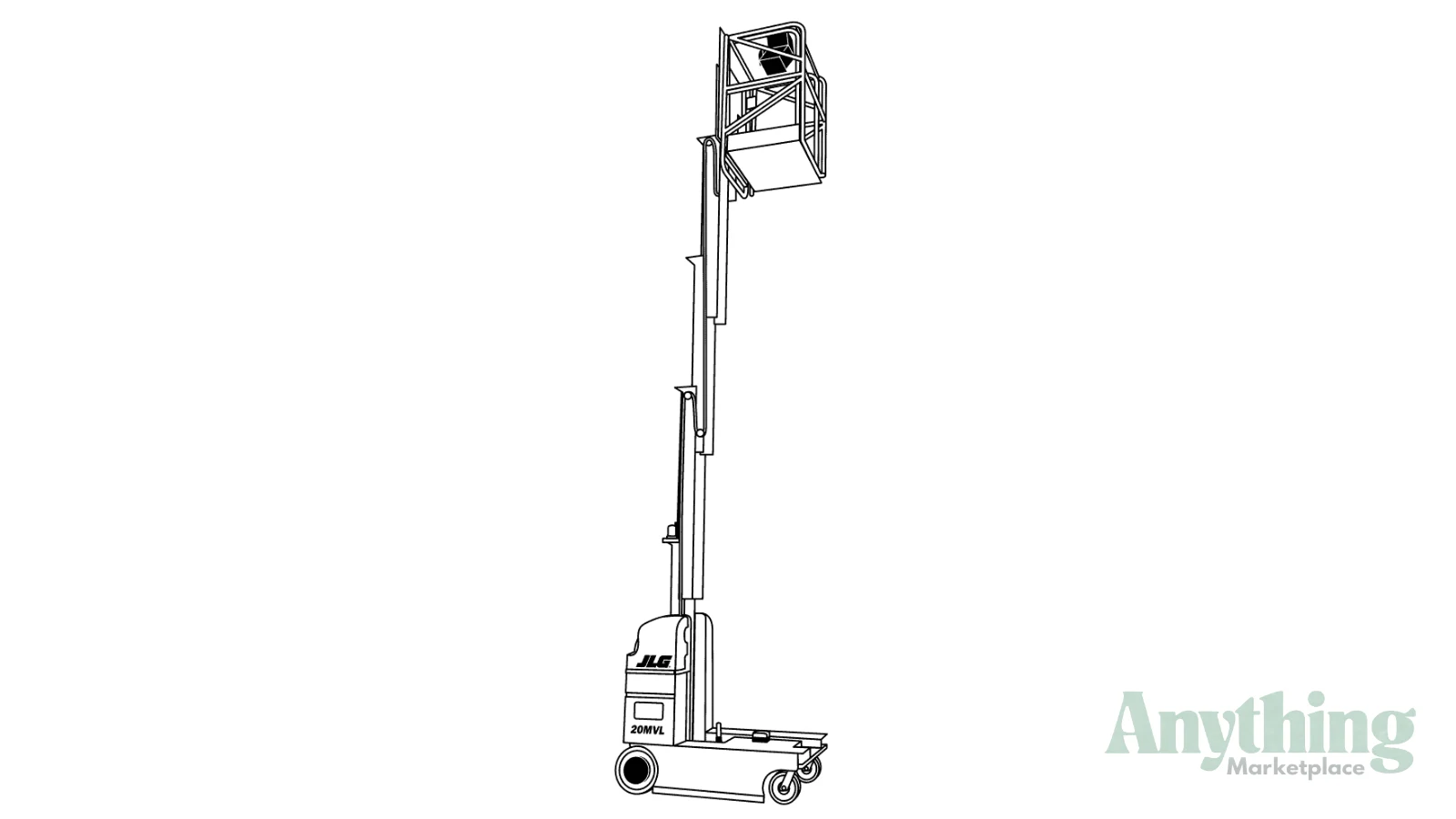

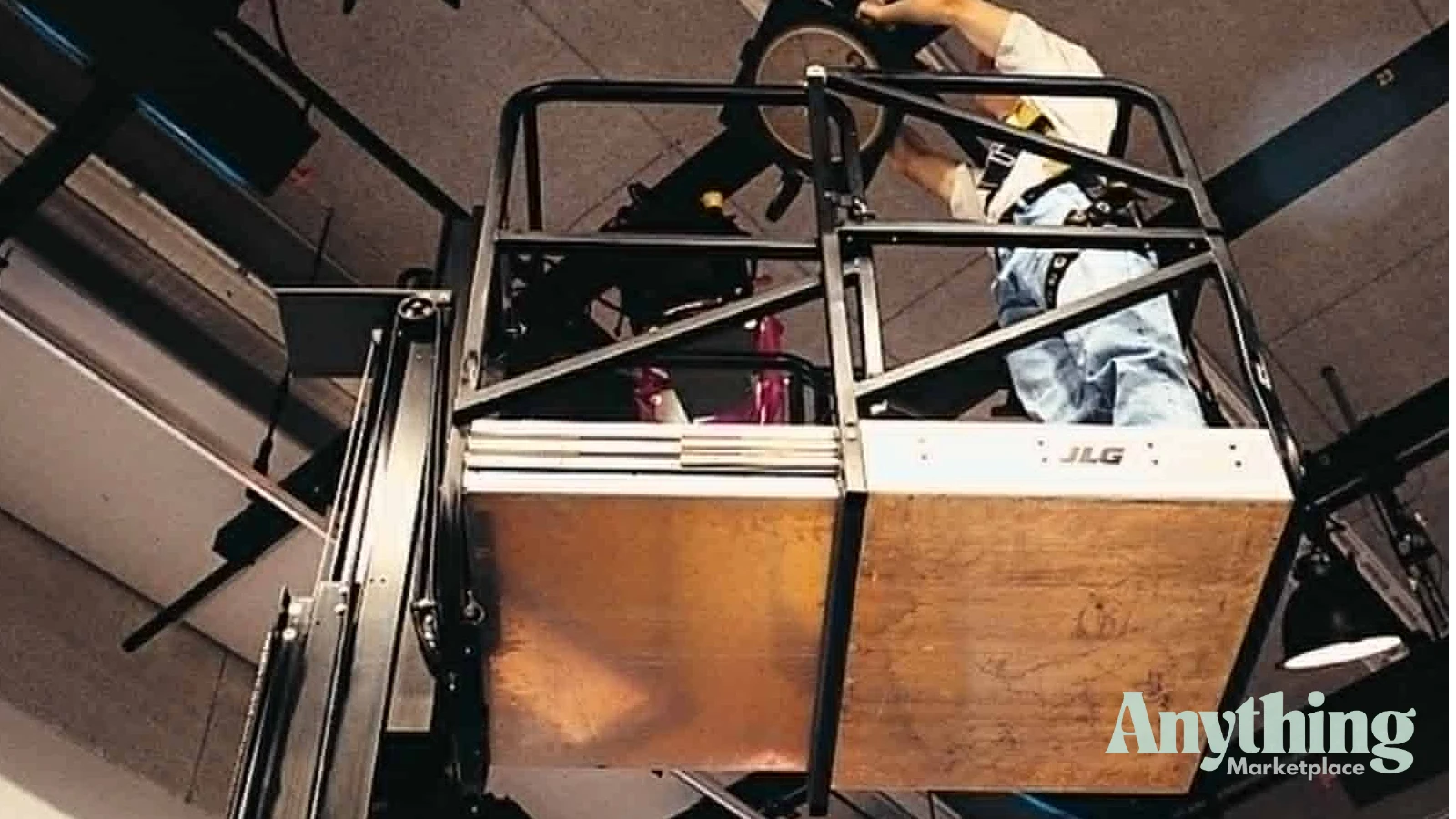

JLG 20MVL Vertical Lift/Stock Picker with 7.94 max Reaching Height.
2 Versions available – Extendable Platform or Platform with Parcel Tray.

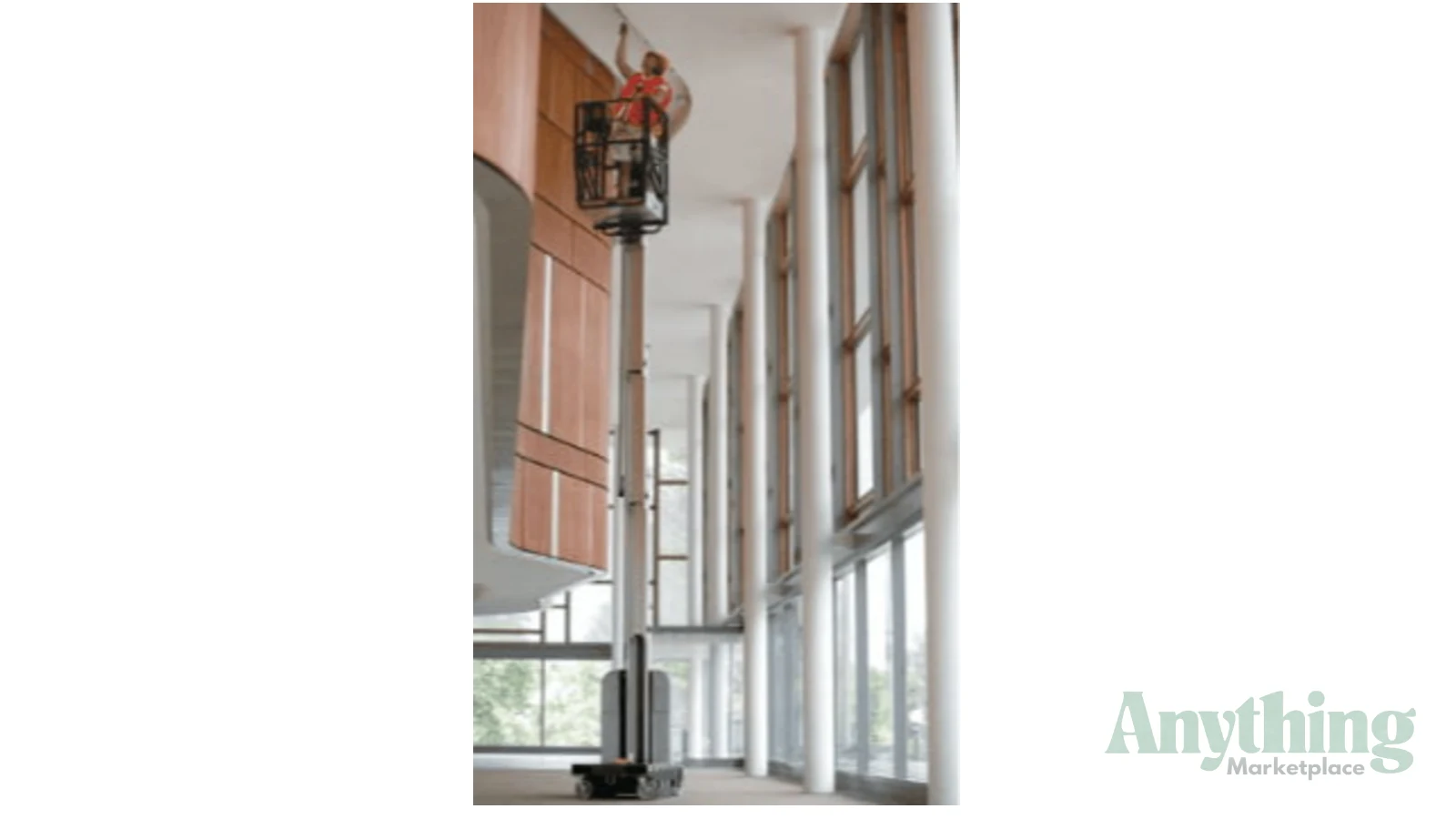

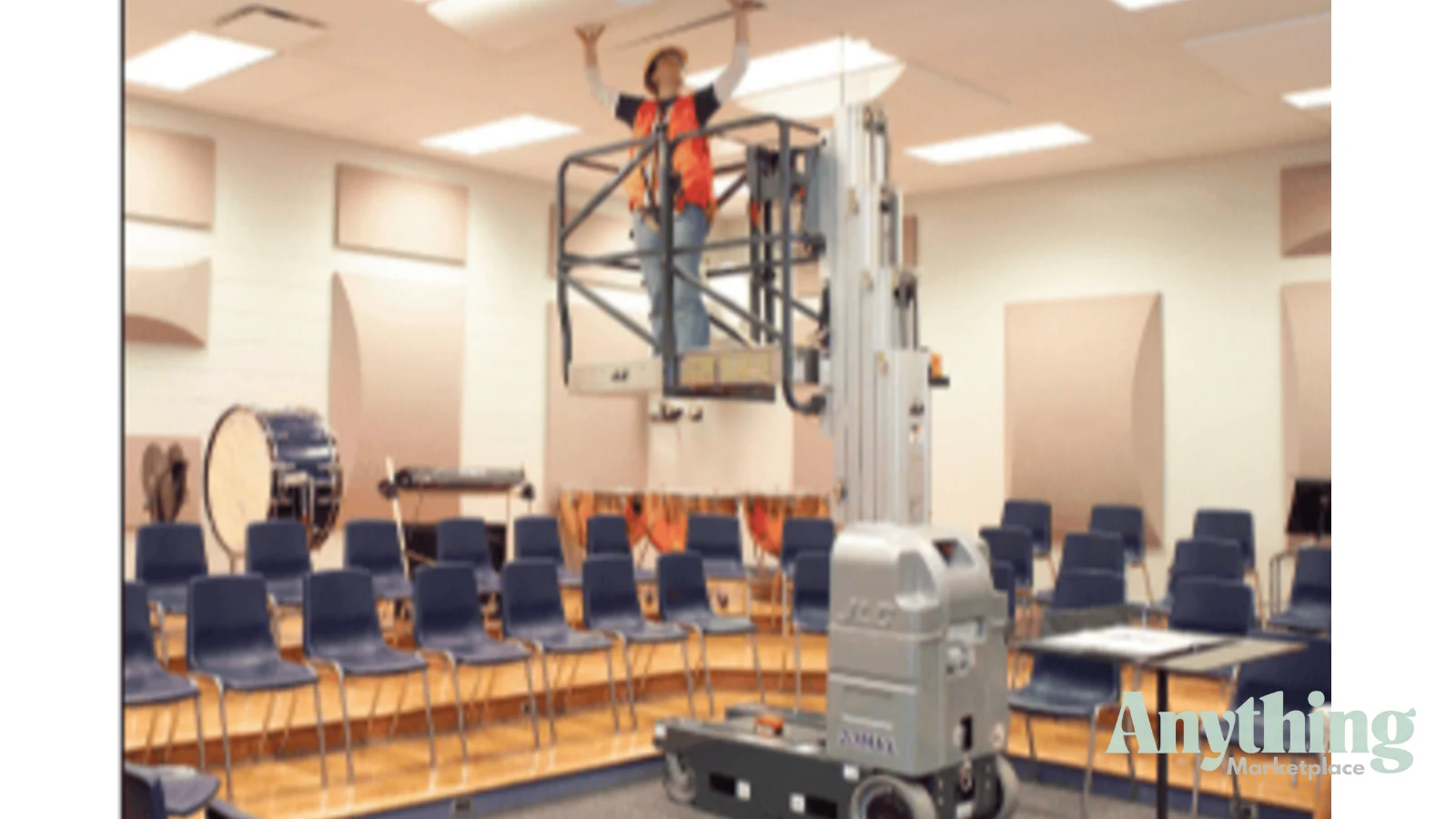

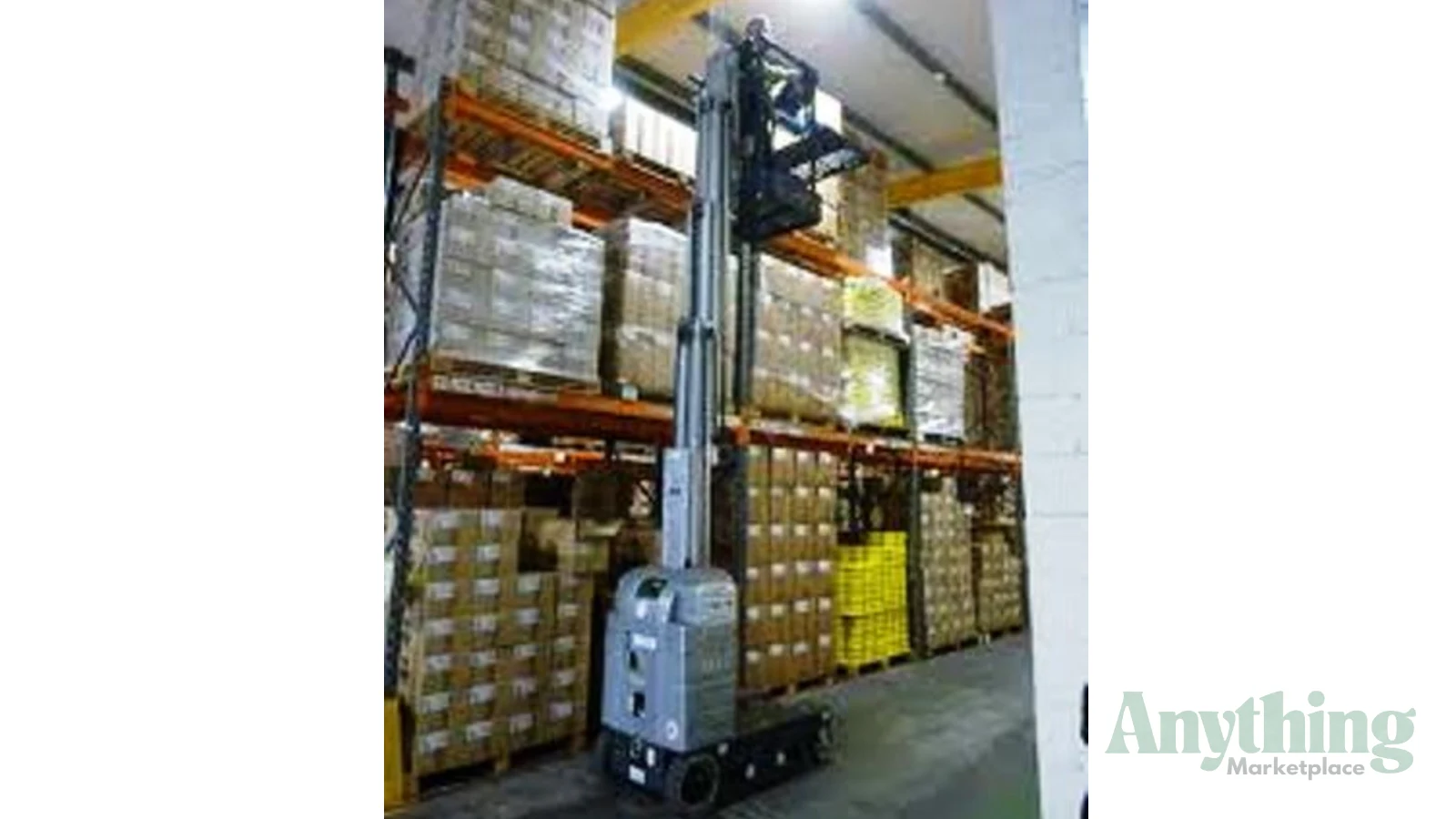

Virtually eliminating the need for scaffolding or ladders, JLG® driveable vertical mast lifts allow you to get closer to your overhead work and maintenance applications. A single person can carry up to 500 lbs (people and materials) and reach up to 20 ft. With innovative controls, maintenance-free components and automatic battery charging, JLG® driveable vertical mast lifts last longer and are more reliable then ever. You will be able to fit through standard doorways, manoeuvre your way through narrow aisles, and go more places then ever before. Vertical mast lifts are great for transporting supplies, lighting, routine maintenance, and even hanging holiday decorations.

20MVL Specifications

Performance:
Platform Height (max.) 5.94m
Working Height 7.94m
Lift Time 20-22 sec
Lower Time 21-26 sec
Platform Capacity Standard 160kg

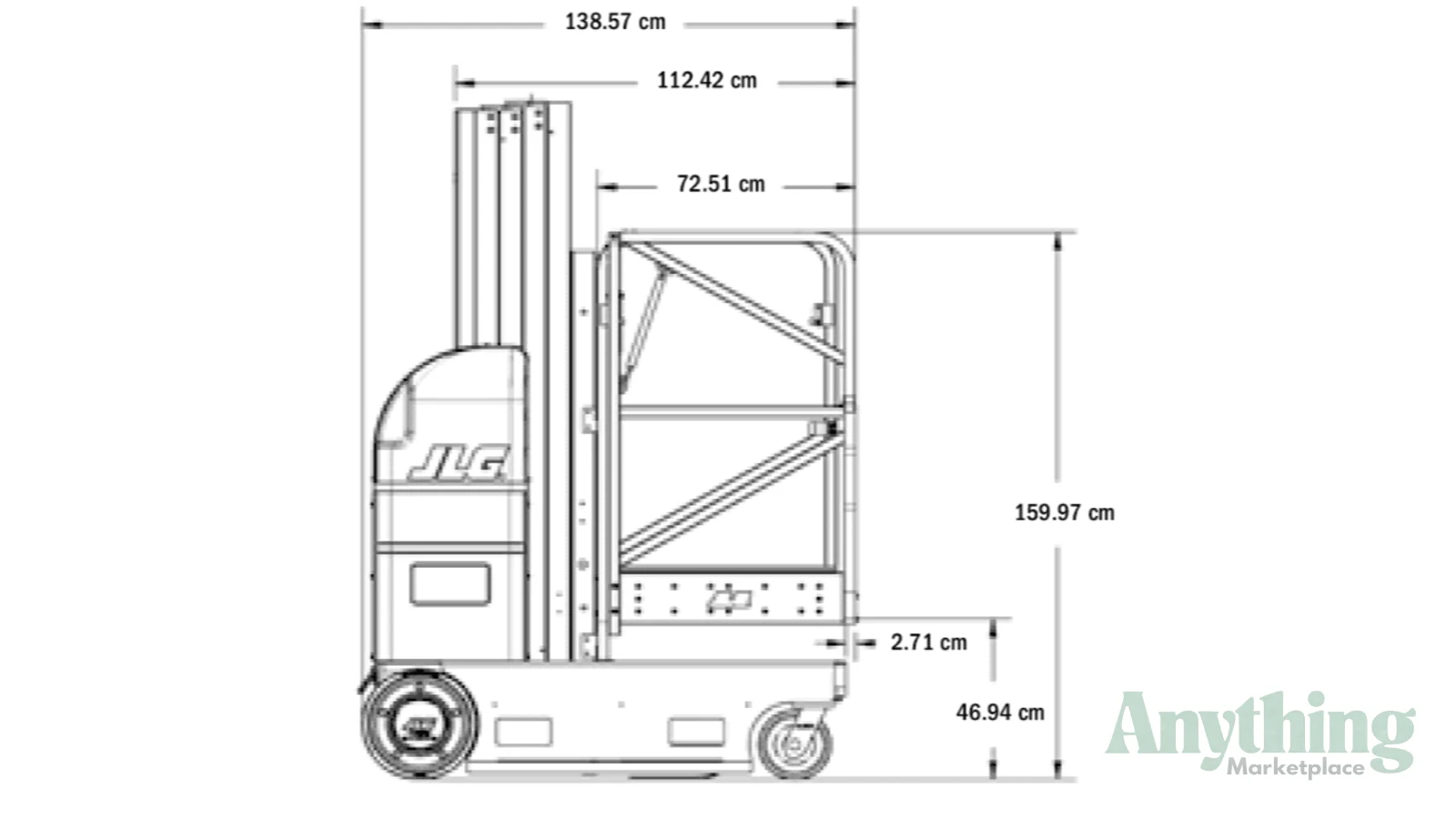

Dimensions:
Stowed Length 1.36m
Stowed Height 1.98m
Ground Clearance 0.05m
platforms:

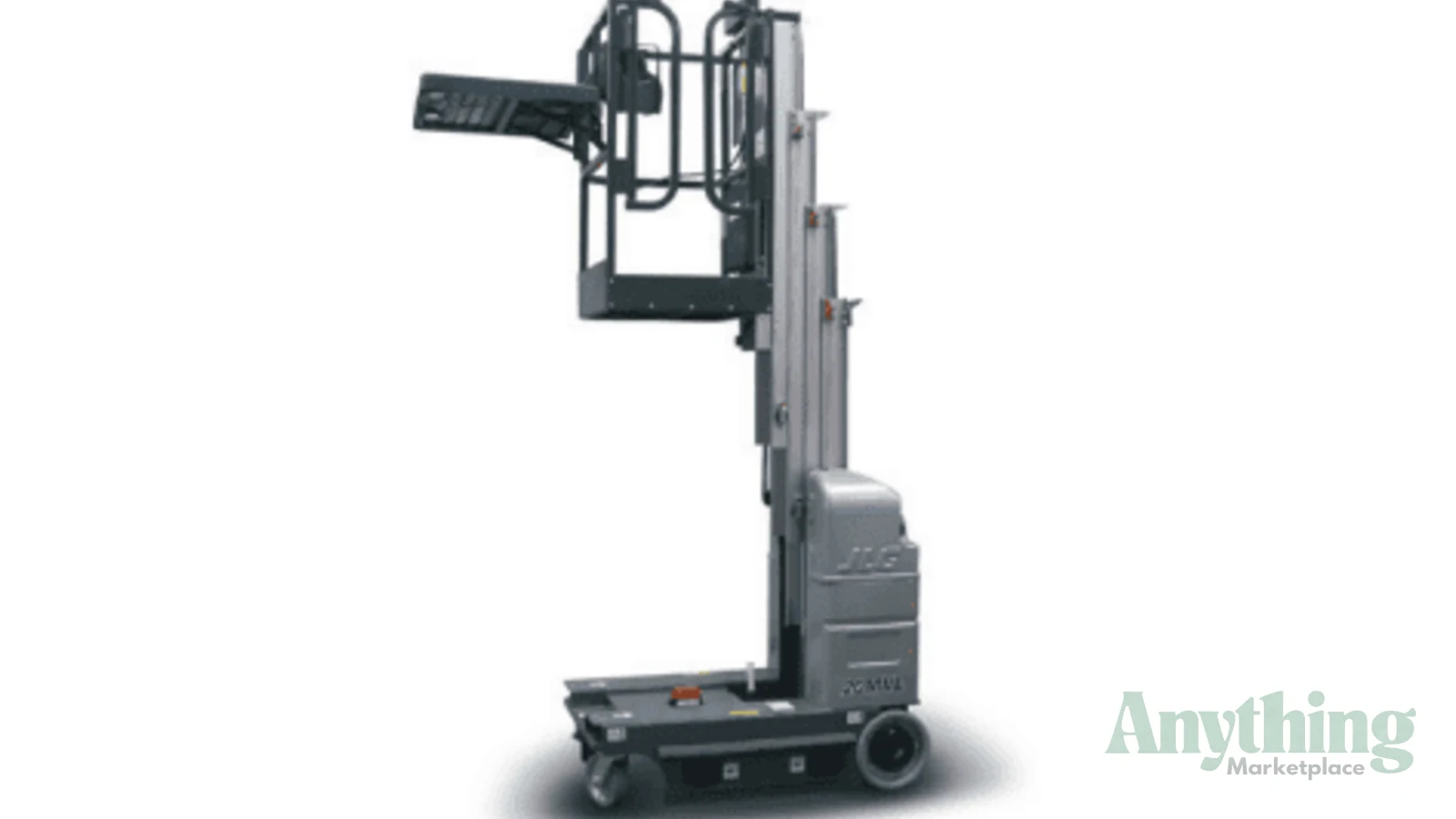

Standard Platform Type Extension
Overall Length with Standard Platform 1.36m
Overall Width with Standard Platform 0.80m
Standard Platform Size – (WxL) 0.66 x 1.20m

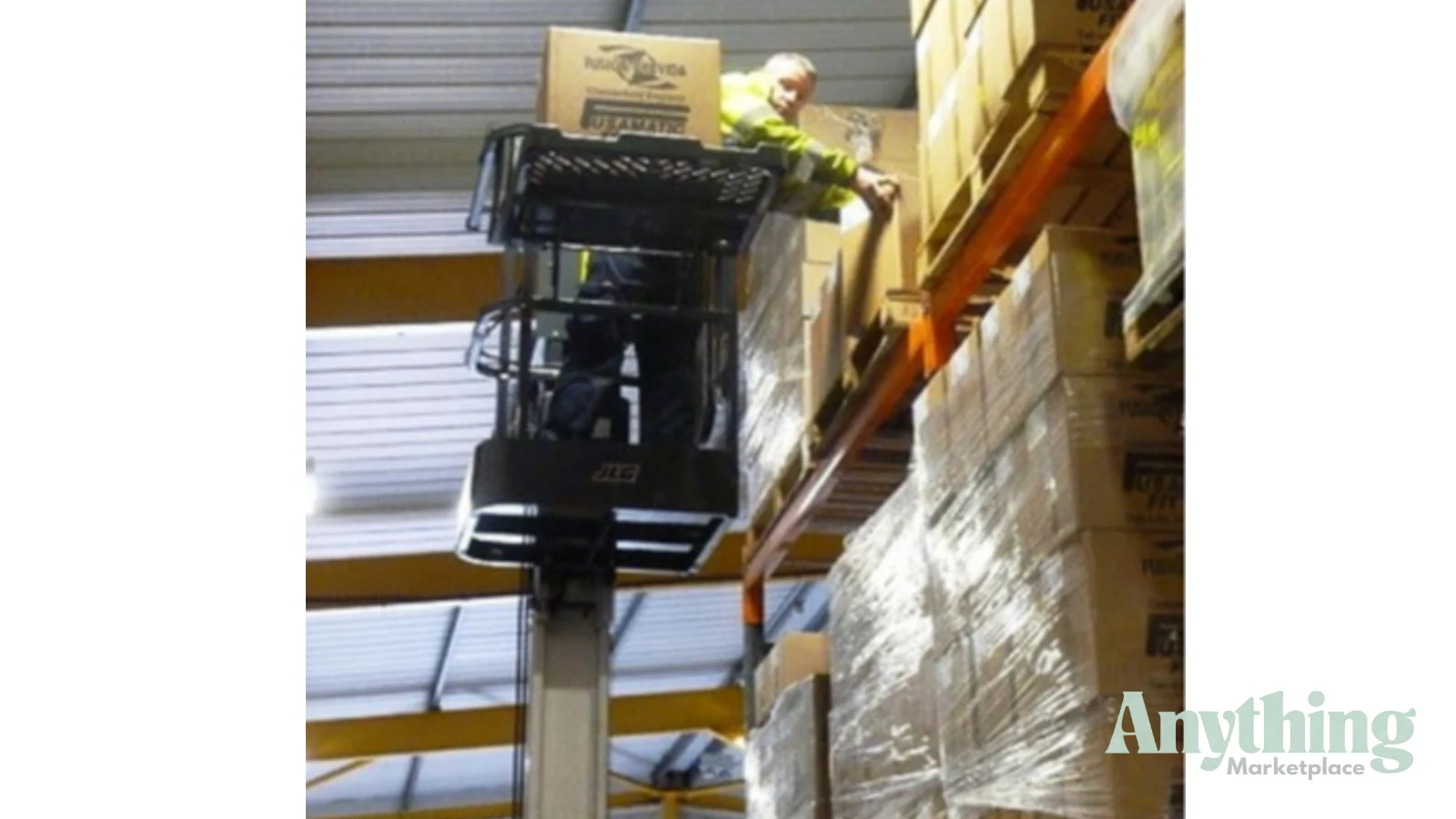

Optional Platform Parcel Tray
Platform Size – (WxL) 0.66 x 0.66
Parcel Tray SWL 45kg
Platform Entry Height 0.48m
power:
Power Source Battery Sealed AGM
DC Voltage 24V
DC Power 100 amp h
Batteries 4 x 6V
travel:
Tyre Type Solid
Inside Turn Radius 0m
Drive Speed Elevated 1km/h
Gradeability 20%
Wind Rating 0m/sec
Weights and capabilities:
GVW 1,090kg
